Air Preparation Filters

Add to My List

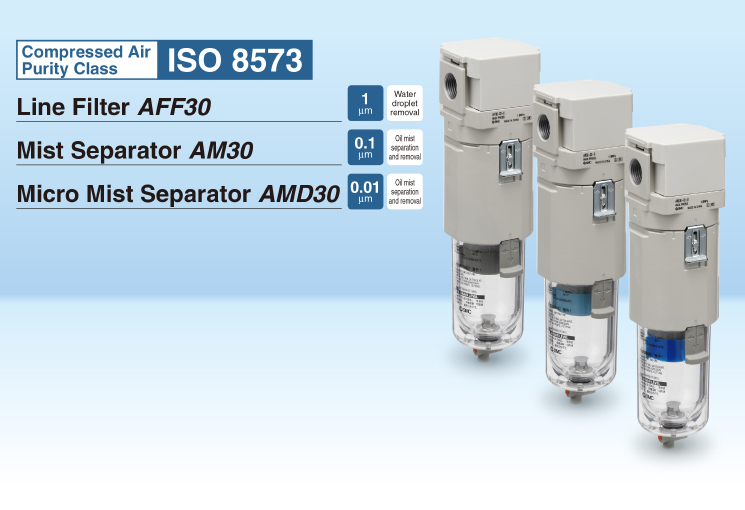

Line Filter AFF30
Mist Separator AM30
Micro Mist Separator AMD30

・Compressed Air Purity Class: ISO8573 ・Face-to-face and depth dimensions reduced by 30% ・Weight reduced by 30% AFF/AM30: 0.39 kg (Existing model: 0.55 kg) ・Flow capacity increased by 50% ・Pressure drop: 10 kPa or less ・No tools are required. 　Easier replacement of the element ・Transparent bowl guard (Double layer design) ・An end cap with slits is used for the element.

Type	Series	Filtration (μm)	Air flow（L/min［ANR］）	Port size
Line Filter	AFF30	1.0 (Filtration efficiency 99%)	750	1/4, 3/8
Mist Separator	AM30	0.1 (Filtration efficiency: 99%)	750	1/4, 3/8
Micro Mist Separator	AMD30	0.01 (Filtration efficiency: 99.9%)	750	1/4, 3/8

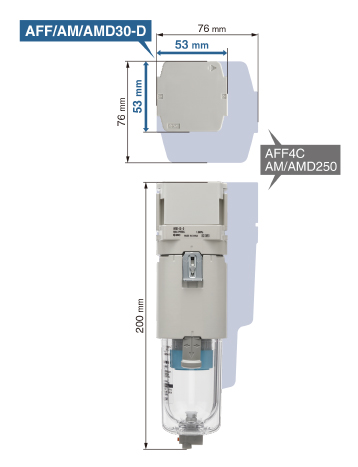

■Face-to-face and depth dimensions reduced by 30%

AFF/AM□30: □53 mm (Existing model: □76 mm)

■Weight reduced by 30%

AFF/AM□30: 0.39 kg (Existing model: 0.55 kg)

■Flow capacity increased by 50%

AMD30: 750 L/min (Same flow capacity for all series)

　AMD250C: 500 L/min (Existing model)

■Pressure drop: 10 kPa or less

■Improved filtration performance

AFF: 1 μm (Existing model: 3 μm)
AM: 0.1 μm (Existing model: 0.3 μm)

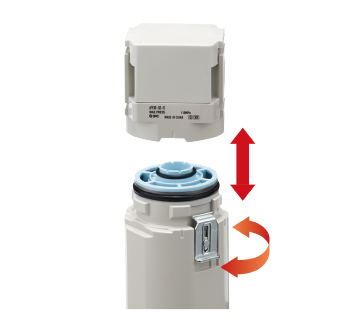

■No tools are required.

Easier replacement of the element

■Transparent bowl guard (Double layer design)

･The inside is visible from 360°.
･The bowl is completely protected from the environment, allowing for improved safety.

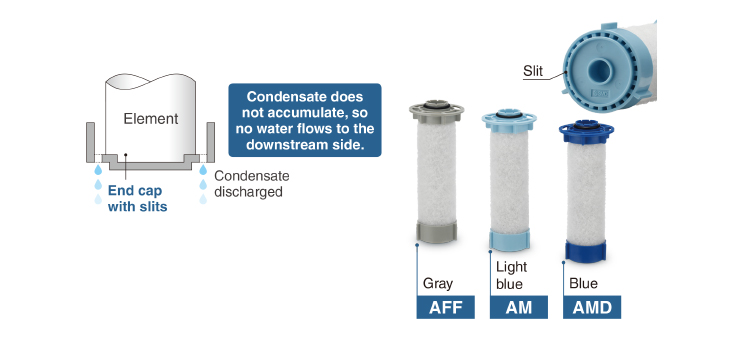

■An end cap with slits is used for the element.

This eliminates the accumulation of condensate.
Even high-velocity fluid is prevented from spattering. The result is a compact bowl design.
